Station Météo ESP32

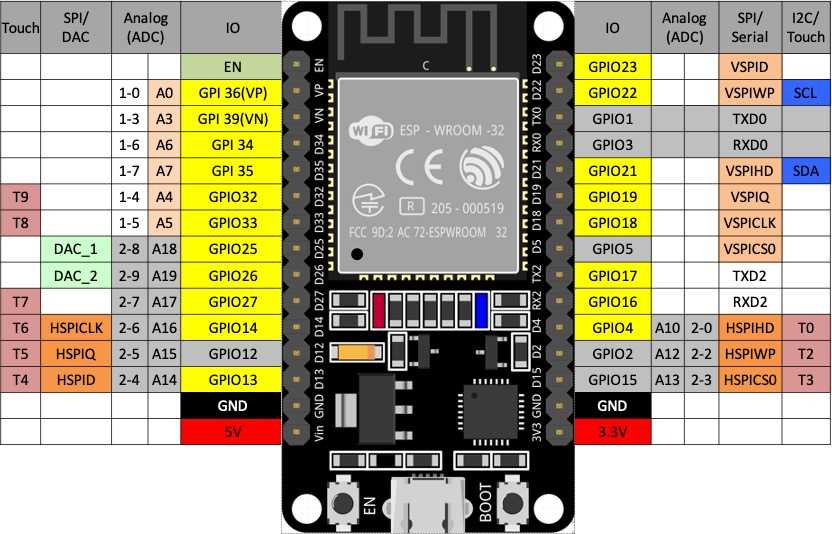

Utilisation d’un module ESP32S WROOM 30 pins
| ESP32S WROOM 30 pins | AHT20-BMP280 |
|---|---|
| GPIO/D 21 | SDA |
| GPIO/D 22 | SCL |
| GND | GND |
| 3.3 or 5 Volts |
| ESP32S WROOM 30 pins | RFM95W |
|---|---|
| GPIO 23 | MOSI |
| GPIO 19 | MISO |
| GPIO 18 | SLK |
| GPIO 5 | CS |
| GPIO 2 | DIO0 |
| ESP32S WROOM 30 pins | AHT20-BMP280 |
|---|---|
| GPIO/D 21 | SDA |
| GPIO/D 22 | SCL |
| GND | GND |
| 3.3 or 5 Volts |
| ESP32S WROOM 30 pins | RFM95W |
|---|---|
| GPIO 23 | MOSI |
| GPIO 19 | MISO |
| GPIO 18 | SLK |
| GPIO 5 | CS |
| GPIO 2 | DIO0 |
