Détecteur IR et mesures

/*

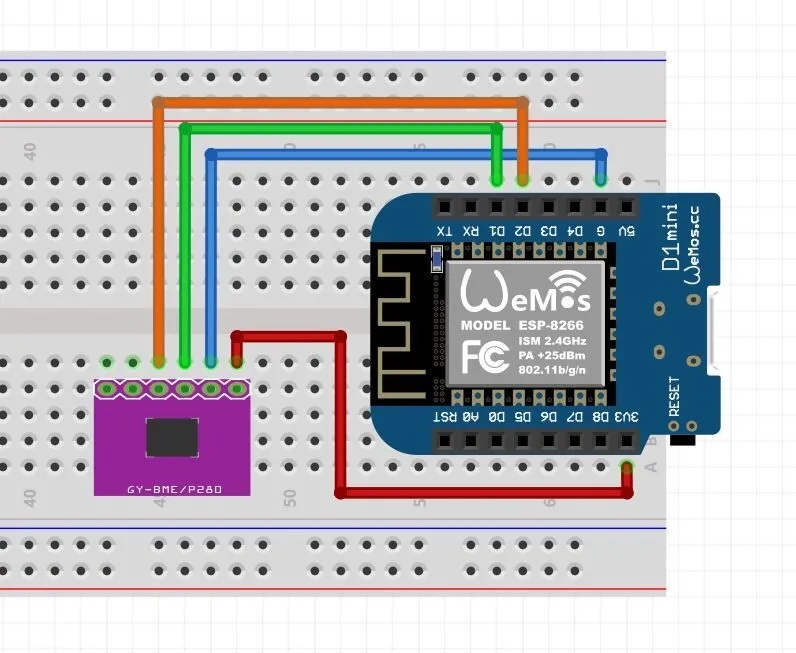

* This is a sketch showing a simple environment sensor based on a BME280 attached via I2C.

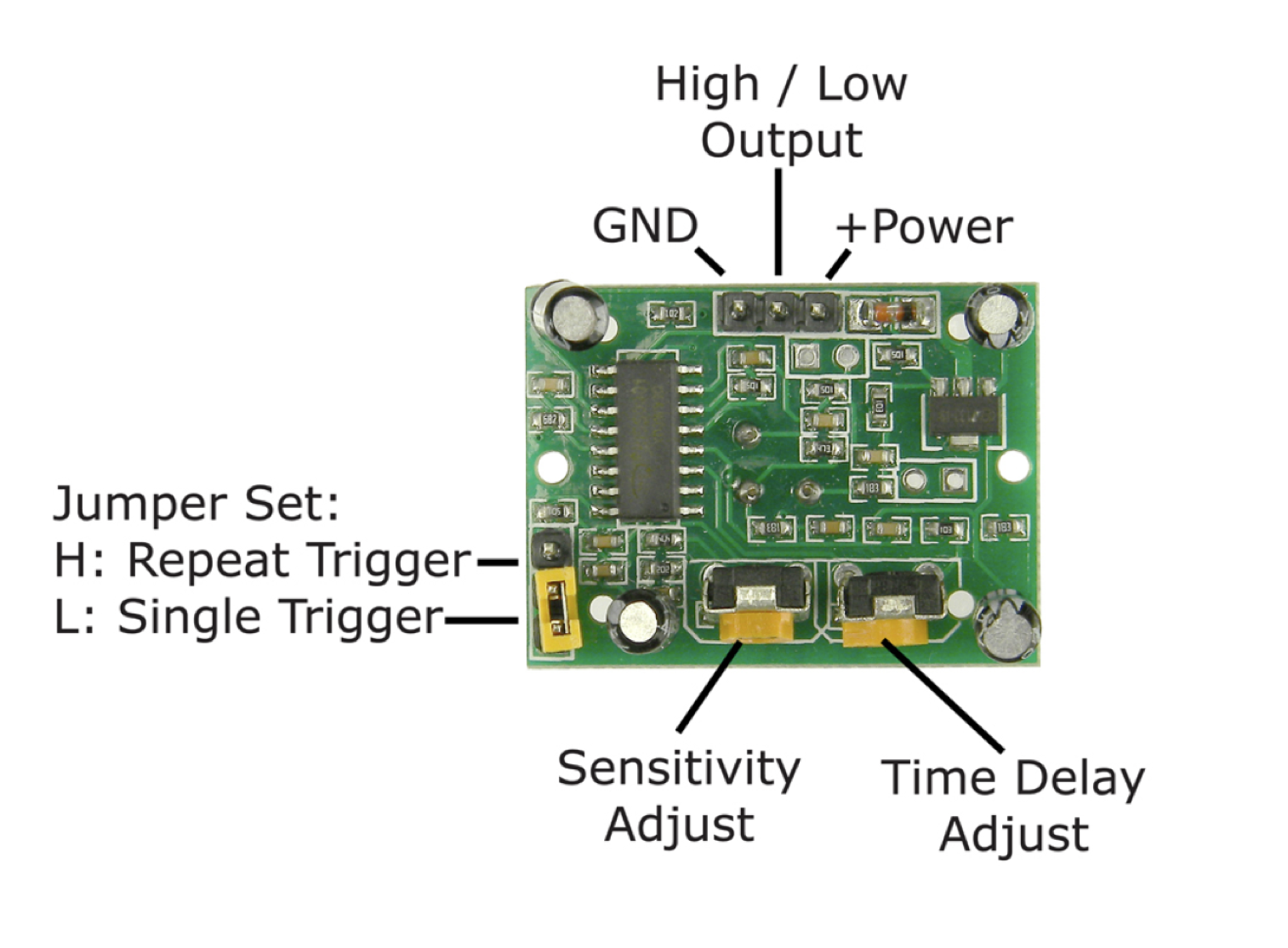

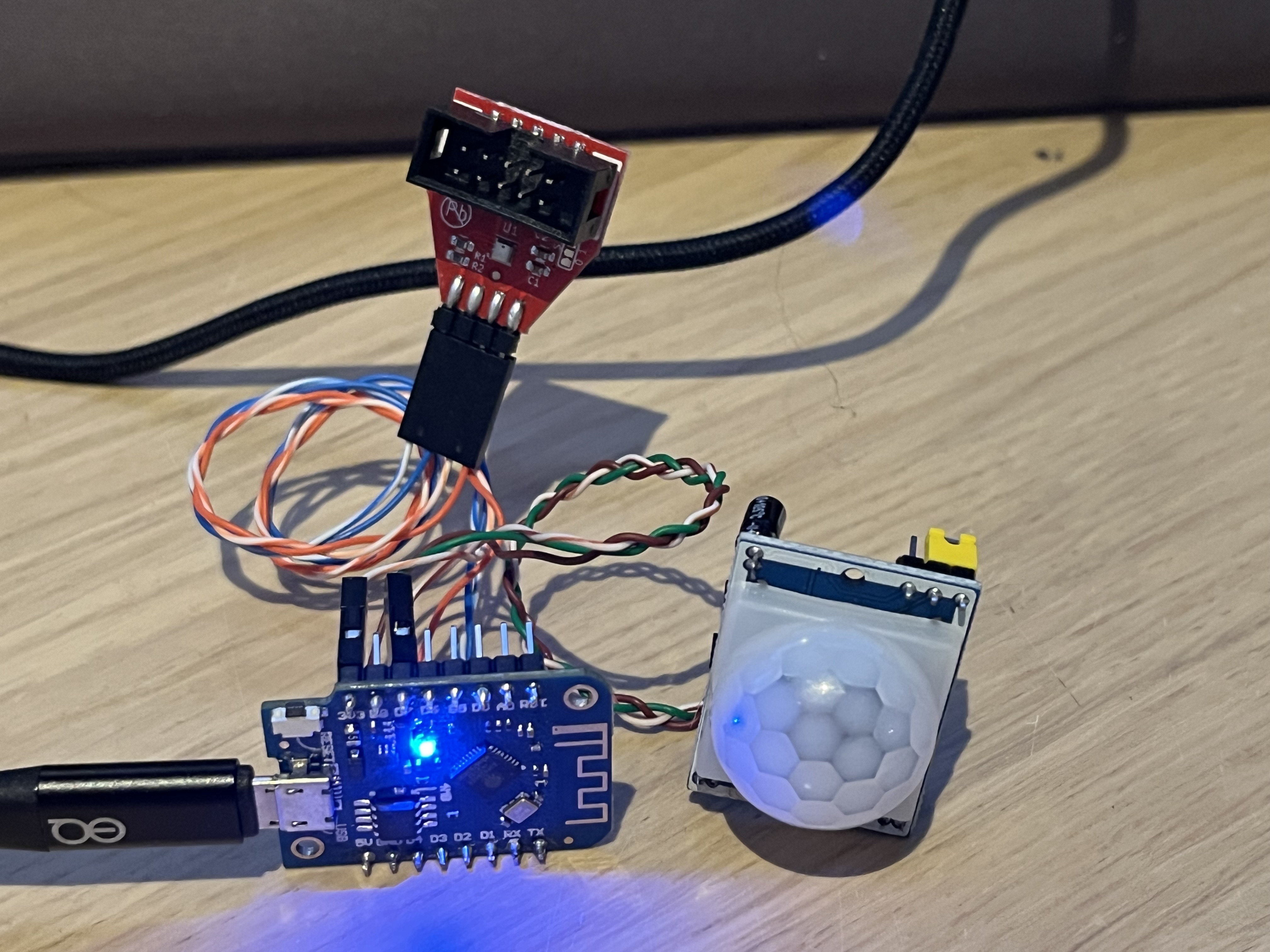

* It is complemented by an IR presence detector
* the system connects a KNX installation via UDP and is configured groupwise

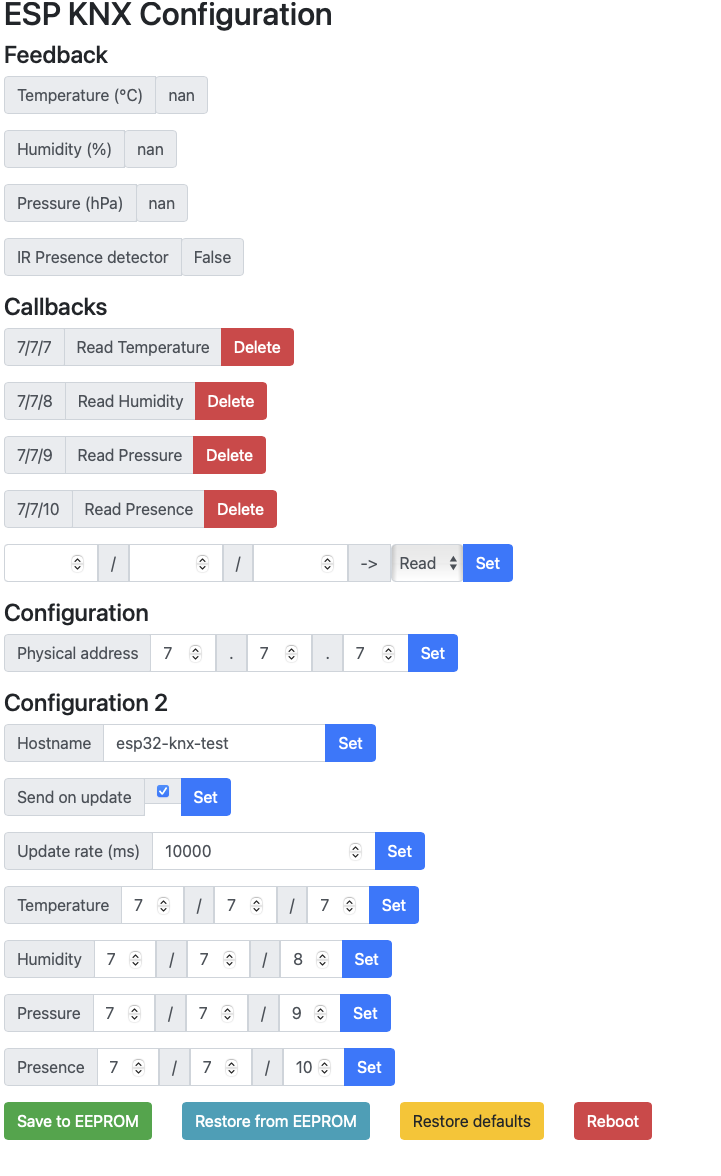

* via  a web interface
* This sketch was tested on a WeMos D1 mini
*/

#include <Adafruit_BME280.h>
#include <esp-knx-ip.h>

// Configuration du WiFi (à modifier suivant votre réseau)
const char* ssid = "wlanSSID";
const char* pass = "lemotdepasse";
IPAddress ip(192, 168, 0, 100);
IPAddress dns(192, 168, 0, 1);
IPAddress gateway(192, 168, 0, 1);
IPAddress subnet(255, 255, 255, 0);
const char* hostname = "esp32-knx-test";

#define LED_PIN D4
#define UPDATE_INTERVAL 10000
#define OUT_PIN D7
#define pirPin D7

unsigned long next_change = 0;

float last_temp = 0.0;
float last_hum = 0.0;
float last_pres = 0.0;

config_id_t temp_ga, hum_ga, pres_ga, presence_ga;
config_id_t hostname_id;
config_id_t update_rate_id, send_rate_id;
config_id_t enable_sending_id;
config_id_t enable_reading_id;

int val = 0;
bool motionState = false; // We start with no motion detected.

Adafruit_BME280 bme;

void setup() {
pinMode(LED_PIN, OUTPUT);
pinMode(pirPin, INPUT);
Serial.begin(115200);

hostname_id = knx.config_register_string("Hostname", 20, String("env"));

// setup the knx callback routines, cb registers and web interface for their setup

enable_sending_id = knx.config_register_bool("Send on update", true);
update_rate_id = knx.config_register_int("Update rate (ms)", UPDATE_INTERVAL);
temp_ga = knx.config_register_ga("Temperature", show_periodic_options);
hum_ga = knx.config_register_ga("Humidity", show_periodic_options);
pres_ga = knx.config_register_ga("Pressure", show_periodic_options);
presence_ga = knx.config_register_ga("Presence", show_periodic_options);


knx.callback_register("Read Temperature", temp_cb);
knx.callback_register("Read Humidity", hum_cb);
knx.callback_register("Read Pressure", pres_cb);
knx.callback_register("Read Presence", presence_cb);

knx.feedback_register_float("Temperature (°C)", &last_temp);
knx.feedback_register_float("Humidity (%)", &last_hum);
knx.feedback_register_float("Pressure (hPa)", &last_pres, 0);
knx.feedback_register_bool("IR Presence detector", &motionState);

//
// Load previous config from EEPROM (The KNX group addresses configured via the web interface are saved in EEPROM)
//

knx.load();

//
// Initialisation du capteur BE280
//

if (!bme.begin(0x76)) {
    Serial.println("Could not find a valid BME280 sensor, check wiring!");
}

//
// Initialisation du WiFi
//

WiFi.config(ip, gateway, subnet, dns);
WiFi.hostname(knx.config_get_string(hostname_id));
WiFi.begin(ssid, pass);

Serial.println("");
Serial.print("[Connecting]");
Serial.print(ssid);

digitalWrite(LED_PIN, LOW);
while (WiFi.status() != WL_CONNECTED) {
    digitalWrite(LED_PIN, HIGH);
    delay(250);
    Serial.print(".");
    digitalWrite(LED_PIN, LOW);
    delay(250);
}

digitalWrite(LED_PIN, HIGH);

//
// Start knx it needs the WiFi connection
//

knx.start();

Serial.println();
Serial.println("Connected to wifi");
Serial.println(WiFi.localIP());
}


//
// start the processing loop
//

void loop() {

knx.loop();

unsigned long now = millis();

// read the PIR pin

val = digitalRead(pirPin);

// If motion is detected (pirPin = HIGH), do the following:
if (val == HIGH) {
    digitalWrite(LED_PIN, LOW); // Turn on the on-board LED.
    // Change the motion state to true (motion detected):
    if (motionState == false) {
    Serial.println("Motion detected!");
    motionState = true;
    knx.write_1bit(knx.config_get_ga(presence_ga), motionState);
    }
}

// If no motion is detected (pirPin = LOW), do the following:
else {
    digitalWrite(LED_PIN, HIGH); // Turn off the on-board LED.

    // Change the motion state to false (no motion):
    if (motionState == true) {
    Serial.println("Motion ended!");
    motionState = false;
    knx.write_1bit(knx.config_get_ga(presence_ga), 0);
    }
}


if (next_change < now)
{
    // knx.config_get_int(update_rate_id) is the update rate as programmed via the web interface

    next_change = now + knx.config_get_int(update_rate_id);
    // read the environment measures
    last_temp = bme.readTemperature();
    last_hum = bme.readHumidity();
    last_pres = bme.readPressure()/100.0f;
    // print them on serial (debug check)
    Serial.print("T: ");
    Serial.print(last_temp);
    Serial.print("°C H: ");
    Serial.print(last_hum);
    Serial.print("% P: ");
    Serial.print(last_pres);
    Serial.println("hPa");

    // knx.config_get_bool(enable_sending_id) configured by the web interface,
    // if true send the  environement data on the KNX bus

    if (knx.config_get_bool(enable_sending_id))
    {
        knx.write_2byte_float(knx.config_get_ga(temp_ga), last_temp);
        knx.write_2byte_float(knx.config_get_ga(hum_ga), last_hum);
        knx.write_2byte_float(knx.config_get_ga(pres_ga), last_pres);
        knx.write_1bit(knx.config_get_ga(presence_ga),motionState);
    }
}

delay(50);
}

bool show_periodic_options()
{
return knx.config_get_bool(enable_sending_id);
}

bool enable_reading_callback()
{
return knx.config_get_bool(enable_reading_id);
}

// callback routines executed when a read on the KNX group is detected
// the routine send back the corresponding value

void temp_cb(message_t const &msg, void *arg)
{
switch (msg.ct)
{
    case KNX_CT_READ:
    {
    knx.answer_2byte_float(msg.received_on, last_temp);
    Serial.print("Sending Temperature on ga: ");
    Serial.print(last_temp);
    break;
    }
}
}

void hum_cb(message_t const &msg, void *arg)
{
switch (msg.ct)
{
    case KNX_CT_READ:
    {
    knx.answer_2byte_float(msg.received_on, last_hum);
    Serial.print("Sending Humidity on ga: ");
    Serial.println(last_hum);
    break;
    }
}
}

void pres_cb(message_t const &msg, void *arg)
{
switch (msg.ct)
{
    case KNX_CT_READ:
    {
    knx.answer_2byte_float(msg.received_on, last_pres);
    Serial.print("Sending Pressure on ga: ");
    Serial.println(last_pres);
    break;
    }
}
}

void presence_cb(message_t const &msg, void *arg)
{
switch (msg.ct)
{
    case KNX_CT_READ:
    {

    knx.answer_1bit(msg.received_on, motionState);
    Serial.print("Sending Presence on ga: ");
    Serial.print(knx.config_get_string(presence_ga));
    Serial.print(" ");
    Serial.println(motionState);
    break;
    }
}
}
