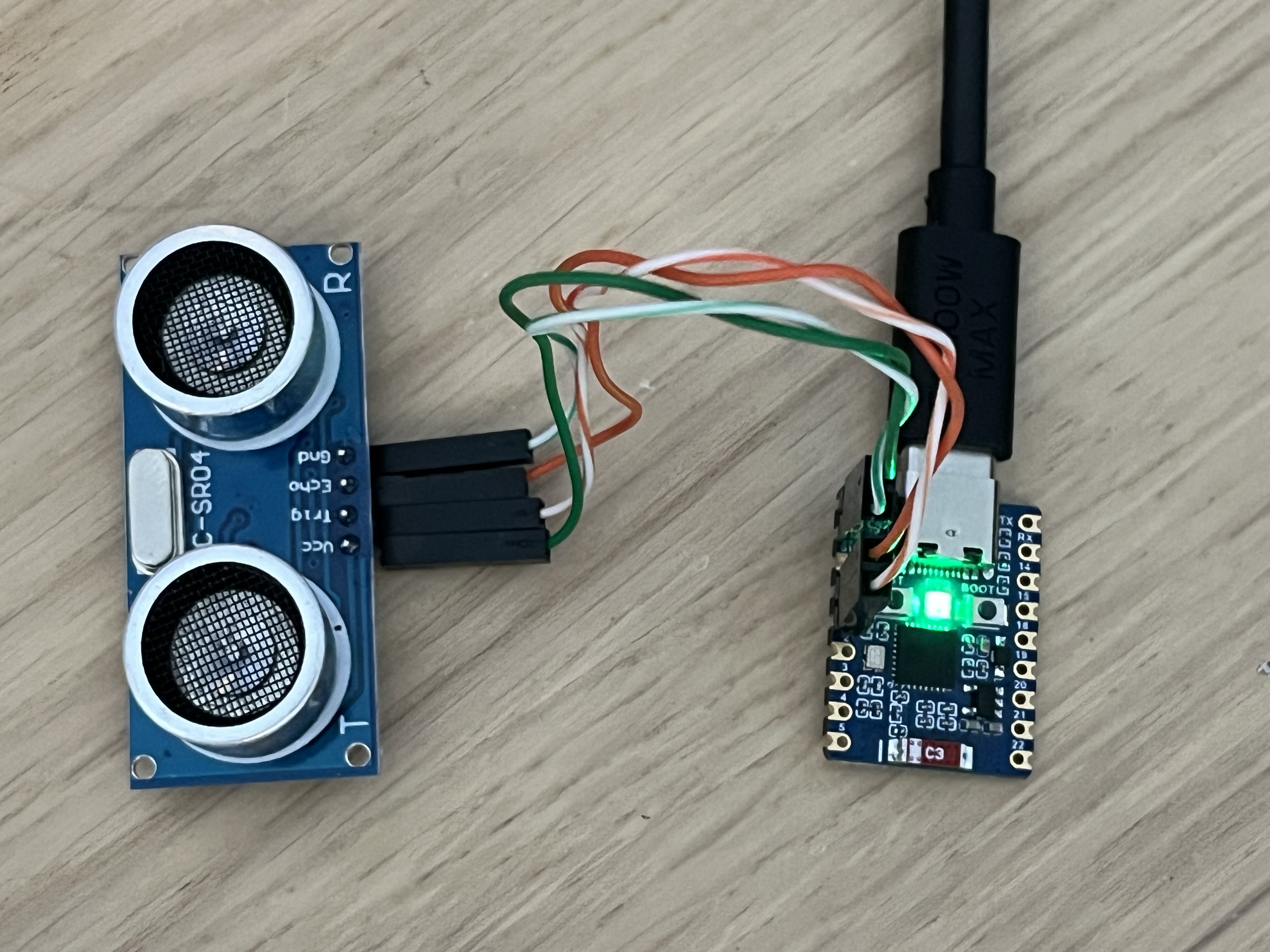

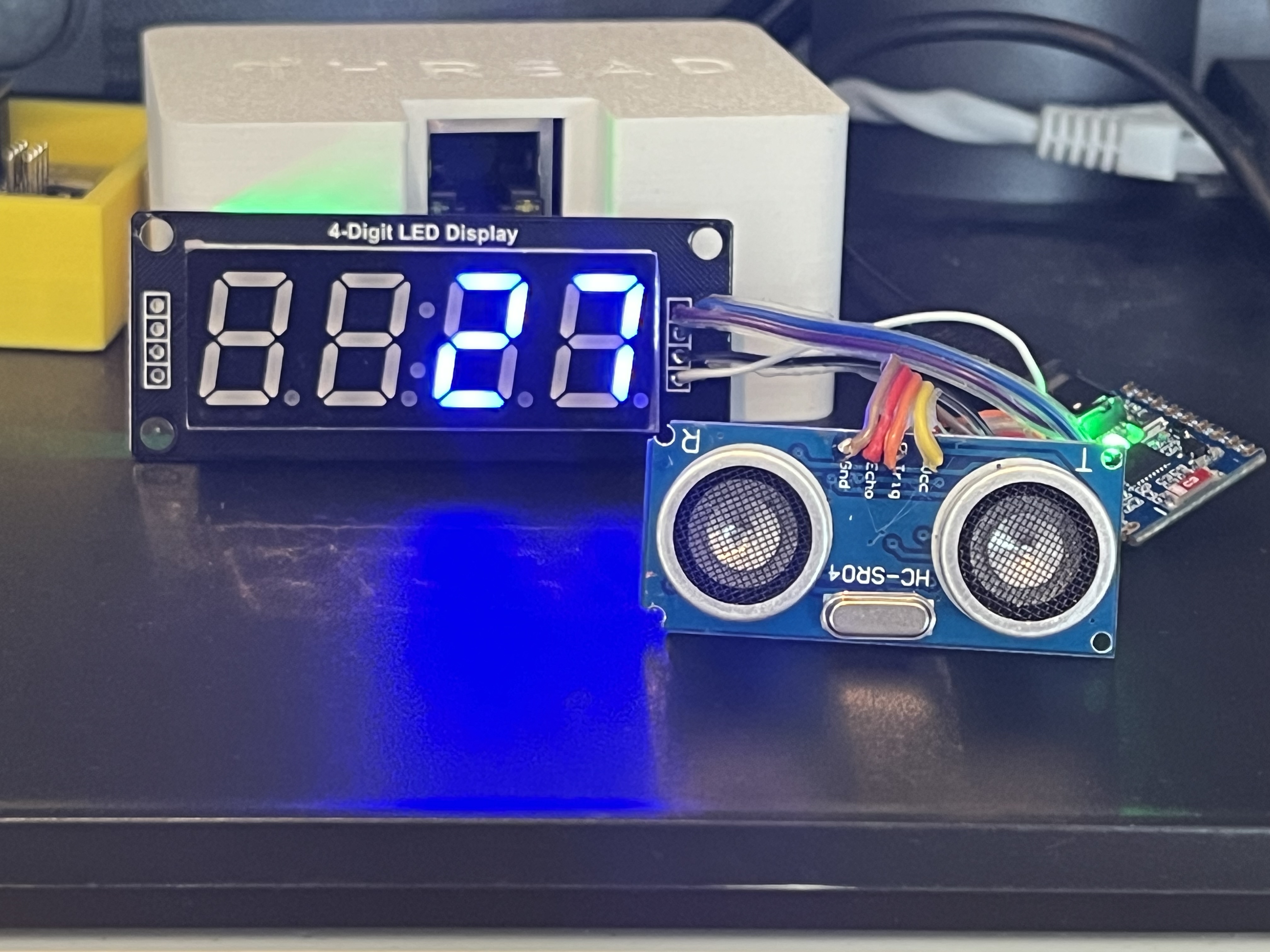

Mesure de distance Ultra-Sonique

//
// Configure USC CDC on boot to Enabled
// partition scheme zigbee 4 MB with spiffs
// configure the Zigbee to ED (end device) in the IDE tools


#ifndef ZIGBEE_MODE_ED
#error "Zigbee end device mode is not selected in Tools->Zigbee mode"
#endif

#include "Zigbee.h"
#include <ESPCPUTemp.h>
#include <FastLED.h>


#define LED_BUILTIN 13 //blue LED user conrolable
#define RGB_LED 8 //controlable RGB LED
#define NUM_LEDS 1
#define DATA_PIN 8
#define BRIGHTNESS 16


ESPCPUTemp tempSensor;

#define DELAY_DISTANCE 250 // delay between consecutive distance measurements in milliseconds

#define ANALOG_DEVICE_ENDPOINT_NUMBER 1
#define TEMP_SENSOR_ENDPOINT_NUMBER 2

ZigbeeAnalog zbAnalogDevice = ZigbeeAnalog(ANALOG_DEVICE_ENDPOINT_NUMBER);
ZigbeeTempSensor zbTempSensor = ZigbeeTempSensor(TEMP_SENSOR_ENDPOINT_NUMBER);

CRGB leds[NUM_LEDS];

uint8_t button = BOOT_PIN;
const int trigPin = 0;
const int echoPin = 1;

//define sound speed in cm/uS
#define SOUND_SPEED 0.034
#define CM_TO_INCH 0.393701

long duration;
float distanceCm;
float distanceInch;
float temp;
float oldt;
int count;
char retval[256];

/********************* DISTANCE sensor measure **************************/

static void distance_sensor_value_update(void *arg) {

for (;;) {
    // read the raw analog value from the sensor
    digitalWrite(trigPin, LOW);
    delayMicroseconds(2);
    // Sets the trigPin on HIGH state for 10 micro seconds
    digitalWrite(trigPin, HIGH);
    delayMicroseconds(10);
    digitalWrite(trigPin, LOW);

    // Reads the echoPin, returns the sound wave travel time in microseconds
    duration = pulseIn(echoPin, HIGH);

    // Calculate the distance
    distanceCm = duration * SOUND_SPEED/2;
    int distance_raw = int(distanceCm);

    // Prints the distance in the Serial Monitor
    //Serial.print("Distance (cm): ");
    //Serial.println(distance_raw);
    sprintf(retval,"Duration: %d\tDistance %d", int(duration), distance_raw );
    //Serial.println(retval);
    //Serial.println(distanceInch);
    zbAnalogDevice.setAnalogInput(distance_raw);  // send distance in cm to zigBee
    // Analog input supports reporting
    zbAnalogDevice.reportAnalogInput();
    delay(DELAY_DISTANCE);  // reduce delay (in ms), if you want your device to react more quickly
  }
}


/****************** routine that measures the CPU temperature and reports it ************/

static void temp_sensor_value_update(void *arg) {
for (;;) {
    // Read temperature sensor value
    float tsens_value = tempSensor.getTemp();
    //Serial.printf("Updated temperature sensor value to %.2f°C\r\n", tsens_value);
    // Update temperature value in Temperature sensor EP
    zbTempSensor.setTemperature(tsens_value);
    delay(5000); // take a measure every 5 seconds
}
}

void onAnalogOutputChange(float analog_output) {
Serial.printf("Received analog output change: %.1f\r\n", analog_output);
Serial.println(retval);
}


/********************* Setup the bits and blobs **************************/

void setup() {
Serial.begin(115200);


FastLED.addLeds<NEOPIXEL, DATA_PIN>(leds, NUM_LEDS);

// Init button for factory reset
pinMode(button, INPUT_PULLUP);
pinMode(trigPin, OUTPUT); // Sets the trigPin as an Output
pinMode(echoPin, INPUT); // Sets the echoPin as an Input

leds[0] = CRGB::Green;    //RGB LED RED whe starting, on the zero Red and green are inverted !!!
FastLED.setBrightness(BRIGHTNESS);
FastLED.show(); // swith the RGB LED on

zbAnalogDevice.setManufacturerAndModel("on4kch", "ZigbeeDistance");

// Add analog clusters to Zigbee Analog according your needs
zbAnalogDevice.addAnalogInput();  //define an analog input entry to sned the distance
zbAnalogDevice.addAnalogOutput(); //define an analog output entry to get parameters from outside

zbAnalogDevice.onAnalogOutputChange(onAnalogOutputChange);    //define the routine that wil process the outside requests

Zigbee.addEndpoint(&zbAnalogDevice); // add the Analog endpoint

// define the CPU temp. sensor endpoint parameters

// Set minimum and maximum temperature measurement value (10-50°C is default range for chip temperature measurement)
zbTempSensor.setMinMaxValue(10, 60);

// Optional: Set tolerance for temperature measurement in °C (lowest possible value is 0.01°C)
zbTempSensor.setTolerance(1);

// Add endpoint to Zigbee Core
Zigbee.addEndpoint(&zbTempSensor);


/*************************** start the zigbee *************************/

Serial.println("Starting Zigbee...");
// When all EPs are registered, start Zigbee in End Device mode
if (!Zigbee.begin()) {
    Serial.println("Zigbee failed to start!");
    Serial.println("Rebooting...");
    ESP.restart();
} else {
    Serial.println("Zigbee started successfully!");
}
Serial.println("Connecting to network");
while (!Zigbee.connected()) {
    Serial.print(".");
    delay(100);
}

leds[0] = CRGB::Red;
FastLED.show();
Serial.println();

// Start distance and temperature sensor reading task
xTaskCreate(distance_sensor_value_update, "distance_sensor_update", 2048, NULL, 10, NULL);
xTaskCreate(temp_sensor_value_update, "temp_sensor_update", 2048, NULL, 10, NULL);

// Set reporting schedule for illuminance value measurement in seconds, must be called after Zigbee.begin()
// min_interval and max_interval in seconds, delta
// if min = 1 and max = 0, delta = 1000, reporting is sent when raw illuminance value changes by 1000, but at most once per second
// if min = 0 and max = 10, delta = 1000, reporting is sent every 10 seconds or if raw illuminance value changes by 1000
// if min = 0, max = 10 and delta = 0, reporting is sent every 10 seconds regardless of illuminance change
// Note: On pairing with Zigbee Home Automation or Zigbee2MQTT the reporting schedule will most likely be overwritten with their default settings

zbAnalogDevice.setAnalogInputReporting(0, 0, 5);  // report immediately if value changes by 5 cm

zbTempSensor.setReporting(0, 0, 1);

if (tempSensor.begin()) {
    Serial.println("Temperature sensor initialized successfully");
} else {
    Serial.println("Failed to initialize temperature sensor");
}
}

/********************* Main loop **************************/
void loop() {
// Checking button for factory reset if pressed more then 3 seconds, reset zigbee, will need to be included again.
if (digitalRead(button) == LOW) {  // Push button pressed
    // Key debounce handling
    delay(100);
    int startTime = millis();
    while (digitalRead(button) == LOW) {
    delay(50);
    if ((millis() - startTime) > 3000) {
        // If key pressed for more than 3 secs, factory reset Zigbee and reboot
        Serial.println("Resetting Zigbee to factory and rebooting in 1s");
        delay(1000);
        Zigbee.factoryReset();
    }
    }
    // force report of distance when button is pressed
    Serial.println("Report AnalogInput ");
    zbAnalogDevice.reportAnalogInput();
}

import * as m from "zigbee-herdsman-converters/lib/modernExtend";
const defaultReporting = {min: 0, max: 3600, change: 0};

export default {
    zigbeeModel: ["ZigbeeDistance"],
    model: "ZigbeeDistance",
    vendor: "ON4KCH",
    description: "Automatically generated definition",
    extend: [
        m.deviceEndpoints({endpoints: {1: 1, 2: 2, 9: 9}}),
        m.temperature({endpointNames: ["2"]}),
        m.numeric({
            name: "Distance",
            unit: "cm",
            scale: 1,
            cluster: "genAnalogInput",
            attribute: "presentValue",
            description: "Measured distance",
            access: "STATE",
            endpointNames: ["1"],
            precision: 2,
            reporting: defaultReporting,
        }),
    ],
    meta: {multiEndpoint: true, friendly_name: "ON4KCH's Distance"},
};
