Station Météo ESP32-C6 zero

#include "config.h"

AHT20 aht;
Adafruit_AHTX0 aht0;

Adafruit_BMP280 bmp;

extern Stream *console;
extern volatile int count;
extern volatile int rcount;

int previous=0;
ZigbeeTempSensor zbTempSensor = ZigbeeTempSensor(TEMP_SENSOR_ENDPOINT_NUMBER);
ZigbeePressureSensor zbPressureSensor = ZigbeePressureSensor(PRESSURE_SENSOR_ENDPOINT_NUMBER);
//ZigbeeWindSpeedSensor zbWindSpeedSensor = ZigbeeWindSpeedSensor(WIND_SPEED_SENSOR_ENDPOINT_NUMBER);
ZigbeeAnalog zbAnalogDevice = ZigbeeAnalog(ANALOG_DEVICE_ENDPOINT_NUMBER);
ZigbeeAnalog zbWindSpeedSensor = ZigbeeAnalog(WIND_SPEED_SENSOR_ENDPOINT_NUMBER);

uint8_t button = BOOT_PIN;
unsigned long windinstant_t=0;
unsigned long wind_avg_t=0;
CRGB leds[NUM_LEDS];


void setup() {
Serial.begin(115200);

unsigned long startTime = millis();
while (!Serial && millis() - startTime < 3000) {
// Wait for up to 5 seconds for a serial connection
// Adjust the timeout value (5000 milliseconds in this case) as needed
}
console = &Serial;
pinMode(button, INPUT_PULLUP);

Serial.println("Started serial");
Serial.println(DEVICE);
FastLED.addLeds<NEOPIXEL, DATA_PIN>(leds, NUM_LEDS);
//pinMode(SDA, INPUT_PULLUP);
//pinMode(SCL, INPUT_PULLUP);
Wire.begin(SDA,SCL);
Serial.println("\nI2C Scanner");
scanDevices(&Wire);


if (aht0.begin() == false) {
    console->println("AHT20 not detected");
} else {
console->println("Found AHT20");
}
bmp.begin(0x77);
setwind();
setrain();

leds[0] = CRGB::Green;    //RGB LED RED whe starting
FastLED.setBrightness(BRIGHTNESS);
FastLED.show();
zbTempSensor.setManufacturerAndModel("ON4KCH", "ZigbeeMeteoStation");
zbTempSensor.addOTAClient(OTA_UPGRADE_RUNNING_FILE_VERSION, OTA_UPGRADE_DOWNLOADED_FILE_VERSION, OTA_UPGRADE_HW_VERSION);


zbTempSensor.setMinMaxValue(10, 50);
zbTempSensor.setTolerance(1);
zbTempSensor.addHumiditySensor(0, 100, 1);
// Optional: Time cluster configuration (default params, as this device will revieve time from coordinator)
zbTempSensor.addTimeCluster();

//zbPressureSensor.setMinMaxValue(0, 10000);
//zbPressureSensor.setTolerance(1);
// Set up analog input
zbAnalogDevice.addAnalogInput();

// second analog input gust

zbWindSpeedSensor.addAnalogInput();

//zbAnalogDevice.setAnalogInputApplication(ESP_ZB_ZCL_AI_RPM_OTHER);


// Add endpoint to Zigbee Core
Zigbee.addEndpoint(&zbWindSpeedSensor);


// Add endpoint to Zigbee Core
Zigbee.addEndpoint(&zbTempSensor);
Zigbee.addEndpoint(&zbPressureSensor);
//Zigbee.addEndpoint(&zbWindSpeedSensor);
Zigbee.addEndpoint(&zbAnalogDevice);
Serial.println("Starting Zigbee...");
// When all EPs are registered, start Zigbee in End Device mode
if (!Zigbee.begin()) {
    Serial.println("Zigbee failed to start!");
    Serial.println("Rebooting...");
    ESP.restart();
} else {
    Serial.println("Zigbee started successfully!");
    }
Serial.println("Connecting to network");
while (!Zigbee.connected()) {
    Serial.print(".");
    delay(100);
}
leds[0] = CRGB::Red;
FastLED.show();

digitalWrite(LED_BUILTIN, LOW);   //set RGB to green indicate zigbee network connected

// Set reporting interval for windspeed measurement in seconds, must be called after Zigbee.begin()
// min_interval and max_interval in seconds, delta (WindSpeed change in m/s)
// if min = 1 and max = 0, reporting is sent only when windspeed changes by delta
// if min = 0 and max = 10, reporting is sent every 10 seconds or windspeed changes by delta
// if min = 0, max = 10 and delta = 0, reporting is sent every 10 seconds regardless of windspeed change

zbPressureSensor.setReporting(0, 600, 1);
zbTempSensor.setReporting(0,300,0);
zbAnalogDevice.setAnalogInputReporting(0,600,1);
zbWindSpeedSensor.setAnalogInputReporting(0, 600, 1);



// Start Zigbee OTA client query, first request is within a minute and the next requests are sent every hour automatically
zbTempSensor.requestOTAUpdate();

}

void mesure( measure &val) {
// Measure sensor values
thp(val);

// Update temperature and humidity values in Temperature sensor EP
if (val.temperature > -20) {zbTempSensor.setTemperature(val.temperature);}
if (val.humidity > 0) {zbTempSensor.setHumidity(val.humidity);}

if (val.pressure > 80) {zbPressureSensor.setPressure(int(val.pressure));}

// Report temperature and humidity values
zbTempSensor.report();
Serial.printf("Reported temperature: %.2f°C, Humidity: %.2f%%\r\n", val.temperature, val.humidity);
zbPressureSensor.report();
Serial.printf("Reported pressure: %.2f°mBar\r\n", val.pressure);
zbAnalogDevice.setAnalogInput(val.avgspeed);
Serial.printf("Reported gust wind speed (km/hr): %6.2f\r\n", val.gust);
zbWindSpeedSensor.setAnalogInput(val.gust);
zbWindSpeedSensor.reportAnalogInput();
Serial.printf("Reported avg wind speed (km/hr): %6.2f\r\n", val.avgspeed);
zbAnalogDevice.reportAnalogInput();
// Add small delay to allow the data to be sent before going to sleep
delay(100);

}



void loop() {

    if (digitalRead(button) == LOW) {  // Push button pressed
    // Key debounce handling
    delay(100);
    int startTime = millis();

    while (digitalRead(button) == LOW) {
    delay(50);
    if ((millis() - startTime) > 10000) {
        // If key pressed for more than 10secs, factory reset Zigbee and reboot
        Serial.println("Resetting Zigbee to factory and rebooting in 1s.");
        delay(1000);
        // Optional set reset in factoryReset to false, to not restart device after erasing nvram, but set it to endless sleep manually instead
        Zigbee.factoryReset(false);
        Serial.println("Going to endless sleep, press RESET button or power off/on the device to wake up");
        esp_sleep_disable_wakeup_source(ESP_SLEEP_WAKEUP_TIMER);
        esp_deep_sleep_start();
    }
    }
}
measure val;
int hits;

// take a measure from sensor and report to zigbee
mesure(val);
char retval[256];




windinstant_t = millis();
wind_avg_t = millis();
val.hitcnt=1; // # of interval for wind average calculation

while (true) {
    unsigned long now = millis();
    // compute instant speed over the WIND_INSTANT inerval
    // store the result in val mesure structure
    if ((now - windinstant_t) >= WIND_INSTANT ) {
    console->print("Counted: ");
    console->println(hits);
// calculate and store "instant speed"
    val.speed = Speed();
    float factor = float(val.hitcnt - 1)/val.hitcnt;
    float temp = val.avgspeed * factor;
    //sprintf(retval,"Interval: %d\tFactor %6.2f\tAVG*factor %6.2f\tlast speed %6.2f \tavg speed %6.2f\n", val.hitcnt, factor, temp, val.speed, val.avgspeed);
    //console->println(retval);

    val.avgspeed = temp + (val.speed / val.hitcnt);
    zbAnalogDevice.setAnalogInput(val.avgspeed);
    float pluie = rain();
    int tilted = rcount;
    sprintf(retval,"Interval: %d\tlast speed %6.2f \tavg speed %6.2f\t tilted: %d \tRAIN: %6.2f\n", val.hitcnt, val.speed, val.avgspeed,tilted,pluie);
    console->println(retval);
    if (val.hitcnt >= 6) {
        val.hitcnt = 1;
        val.gust = val.speed;
    } else {
        val.hitcnt += 1;
        if ( val.speed > val.gust ){
        val.gust = val.speed;
        }
    }
    previous = hits;
    windinstant_t = now;
    } else if ( (now - wind_avg_t) >= WIND_AVG) {
    console->println("Value read from sensors");
    mesure(val);
    sprintf(retval,"AHT20 - Temp: %6.2f °C Humidity: %d %%\tBMP280 - Temp: %6.2f °C Pressure: %7.2f hPa\tlast speed %6.2f \tavg speed %6.2f\n",val.temperature, val.humidity,val.temperature2, val.pressure, val.speed, val.avgspeed);
    console->println(retval);
    wind_avg_t = now;
    }
    if (Serial.available() > 0 ) {
    String comd = Serial.readString();
    if (comd.startsWith("scan")) {
        scanDevices(&Wire);
    } else if (comd.startsWith("read")) {
        thp(val);
    } else if (comd.startsWith("raz")) {
        ESP.restart();
    } else if (comd.startsWith("who")) {
        console->println(DEVICE);
    }
    console->println(comd);
    }
}
delay(10000);
}

#include "config.h"
Stream *console;
uint32_t deviceOnline = 0x00;

extern AHT20 aht;
extern Adafruit_AHTX0 aht0;
extern Adafruit_BMP280 bmp;
volatile int count = 0;
volatile int rcount = 0;   //amount of bucket tips.




//const byte interruptPin = INTERRUPT;
const byte rinterruptPin = RAININTRPT;

enum {
    POWERMANAGE_ONLINE  = _BV(0),
    DISPLAY_ONLINE      = _BV(1),
    RADIO_ONLINE        = _BV(2),
    GPS_ONLINE          = _BV(3),
    PSRAM_ONLINE        = _BV(4),
    SDCARD_ONLINE       = _BV(5),
    AXDL345_ONLINE      = _BV(6),
    BME280_ONLINE       = _BV(7),
    BMP280_ONLINE       = _BV(8),
    BME680_ONLINE       = _BV(9),
    QMC6310_ONLINE      = _BV(10),
    QMI8658_ONLINE      = _BV(11),
    PCF8563_ONLINE      = _BV(12),
    OSC32768_ONLINE      = _BV(13),
};


void scanDevices(TwoWire *w)
{
    uint8_t err, addr;
    int nDevices = 0;
    uint32_t start = 0;

    console->println("I2C Devices scanning");
    for (addr = 1; addr < 127; addr++) {
        start = millis();
        w->beginTransmission(addr); delay(2);
        err = w->endTransmission();
        if (err == 0) {
            nDevices++;
            switch (addr) {
            case 0x77:
            case 0x76:
                console->println("\tFind BMX280 Sensor!");
                deviceOnline |= BME280_ONLINE;
                break;
            case 0x34:
                console->println("\tFind AXP192/AXP2101 PMU!");
                deviceOnline |= POWERMANAGE_ONLINE;
                break;
            case 0x3C:
                console->println("\tFind SSD1306/SH1106 dispaly!");
                deviceOnline |= DISPLAY_ONLINE;
                break;
            case 0x51:
                console->println("\tFind PCF8563 RTC!");
                deviceOnline |= PCF8563_ONLINE;
                break;
            case 0x1C:
                console->println("\tFind QMC6310 MAG Sensor!");
                deviceOnline |= QMC6310_ONLINE;
                break;
            default:
                console->print("\tI2C device found at address 0x");
                if (addr < 16) {
                    console->print("0");
                }
                console->print(addr, HEX);
                console->println(" !");
                break;
            }

        } else if (err == 4) {
            console->print("Unknow error at address 0x");
            if (addr < 16) {
                console->print("0");
            }
            console->println(addr, HEX);
        }
    }
    if (nDevices == 0)
        console->println("No I2C devices found\n");

    console->println("Scan devices done.");
    console->println("\n");
}


void thp( measure &val){
/*
return a structure with measured values from the sensors
REQUIRES initialization of I2C devices:
    AHT20 aht;
    Adafruit_BMP280 bmp;
*/
sensors_event_t humidity, temp;

aht0.getEvent(&humidity, &temp);// populate temp and humidity objects with fresh data

console->print("Getting data from AHT20\t");
val.temperature = temp.temperature; //aht.getTemperature();
val.humidity = humidity.relative_humidity; //aht.getHumidity();
console->println(val.temperature);
console->print("Getting data from BMP\t");
val.pressure = bmp.readPressure() / 100.0;
val.temperature2=bmp.readTemperature();
console->print(val.temperature2);
console->print("\t");
console->println(val.pressure);
console->print("Getting data from count\t");
val.hit= float(count);
console->println(val.hit);
}


void IRAM_ATTR counter() {
static unsigned long last_micros = 0;
unsigned long interrupt_time = millis();
if ( interrupt_time - last_micros > 50UL ) {
    count += 1;                   // increment count
    }
    last_micros = interrupt_time;
}


void IRAM_ATTR countRain() {
static unsigned long last_micros = 0;
unsigned long interrupt_time = millis();
console->print(".");
if ( interrupt_time - last_micros > 50UL ) {
    rcount += 1;                   // increment count
    }
    last_micros = interrupt_time;
}

float Speed() {
/*
calculate the linear speed from magnets hit count, the routine gets called when average timer lapse (thus after measureperiod ms).
REQUIRES:
count: number of magnet detection
measureperiod: averaging period for rotational counts (ms)
RADIUS= distance between HAL detector and rotation axis centre.

PRVIDES:
sets global variable float speed
*/
noInterrupts();
int interval = WIND_INSTANT / 1000; //anemometer averaging interval (sec)
char text[128];  //text buffer for sprintf
int local = count;
float speed;
float RPM;

int tour = local / 4; //3 magnets, it takes 4 hits to detect a full 360°
//speed = 3.1415926 * 2 * float(tour) * RADIUS / float(interval) ;

RPM = float(local) * ( 60 / interval);  // tour/minutes
speed = RPM * RADIUS * 60 * 3.1415926 * 2. / 1000.; // vitesse radiale km/hr = vitesse angulaire (rad/min) * 2 Pi * rayon (m) * 60 (min/hr)  / 1000 (m/km)

if (local > 0) {
    sprintf(text,"  Speed calculation: Count %d \tRPM %8.2f (T/min)\tspeed %8.4f (km/hr) ", local, RPM, speed);
    console->println(text);
}
count=0;
interrupts();
return speed;
}

float rain(){
    /* rain fall is amount of water that fell down in 24 hours at 8:30 in the morning */

    noInterrupts();
    int local = rcount;
    float millis = 0.550053 * local;
    console->println(local);
    interrupts();
    return millis;
}



void setwind(){
/* et the interrupt mechanism that intercept the magnet detection and accumulates its counting */
pinMode(INTERRUPT, INPUT_PULLUP);
attachInterrupt(digitalPinToInterrupt(INTERRUPT), counter, RISING);
//timermeasure.set(measureperiod, Speed);
//TTNuplink.set(ttnuplinkperiod, TTNsend);
}

void setrain() {

console->print("setting rain interupt pin :");
console->println(RAININTRPT);
pinMode(RAININTRPT,INPUT_PULLUP);
attachInterrupt(digitalPinToInterrupt(RAININTRPT), countRain, RISING);
}

#include <Wire.h>
#include <AHT20.h>
#include <Adafruit_BMP280.h>
#include <FastLED.h>
#include <Adafruit_AHTX0.h>

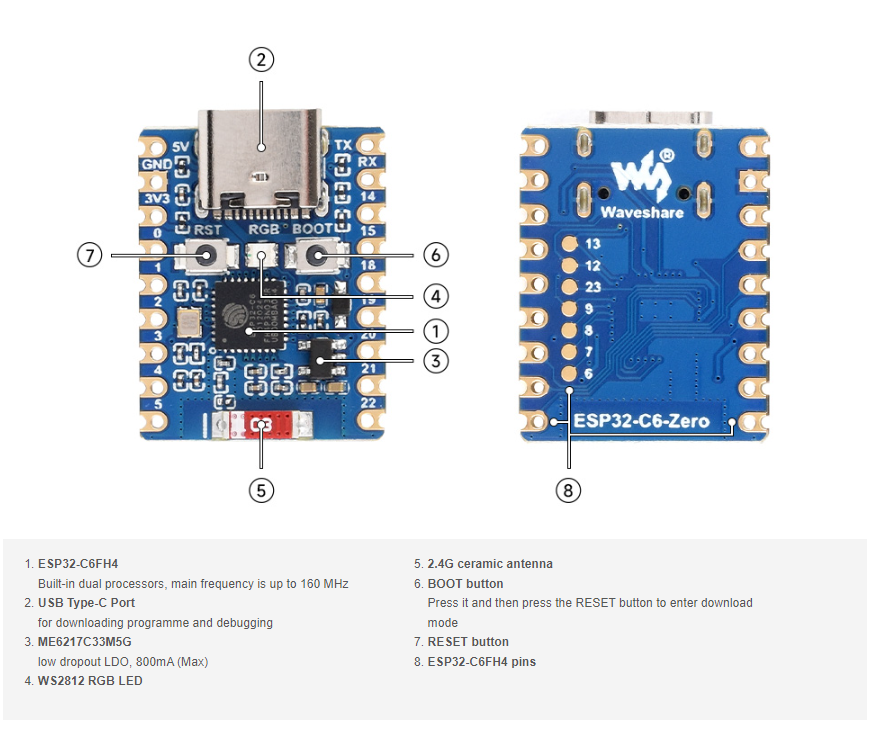

#define DEVICE "ESP32-C6-Zero"
#ifndef ZIGBEE_MODE_ED
#error "Zigbee end device mode is not selected in Tools->Zigbee mode"
#endif

#include "Zigbee.h"


#define LED_BUILTIN 13 //blue LED user conrolable
#define RGB_LED 8 //controlable RGB LED
#define NUM_LEDS 1
#define DATA_PIN 8
#define BRIGHTNESS 16

/* Zigbee OTA configuration */
#define OTA_UPGRADE_RUNNING_FILE_VERSION    0x01010100  // Increment this value when the running image is updated
#define OTA_UPGRADE_DOWNLOADED_FILE_VERSION 0x01010101  // Increment this value when the downloaded image is updated
#define OTA_UPGRADE_HW_VERSION              0x0101      // The hardware version, this can be used to differentiate between different hardware versions

/* Zigbee temperature sensor configuration */
#define TEMP_SENSOR_ENDPOINT_NUMBER 10
#define PRESSURE_SENSOR_ENDPOINT_NUMBER 11
#define ANALOG_DEVICE_ENDPOINT_NUMBER 12
#define WIND_SPEED_SENSOR_ENDPOINT_NUMBER 9

#define RADIUS 0.028 // 28 mm de rayon
#define AVGINTERVALS 6 //# of intervale for average speed should be WIND_AVG / WIND_INSTATNT

#define WIND_INSTANT 5000UL //intervale to compute the instant speed 5000 ms
#define WIND_AVG 30000UL // reporting interval 30 sec

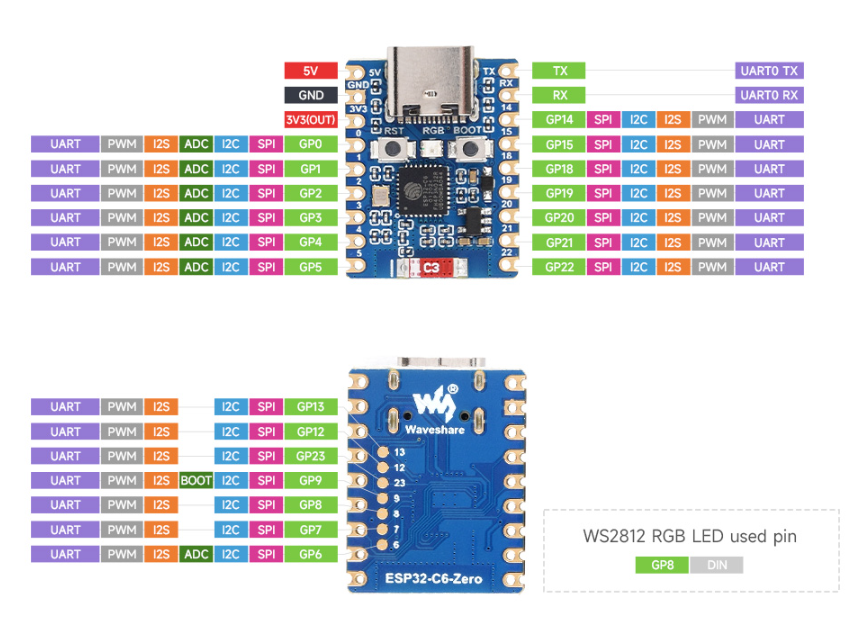

#define SCL 1
#define SDA 0

#define INTERRUPT 3
#define RAININTRPT 5

typedef struct {
    float temperature;
    float temperature2;
    float pressure;
    int humidity;
    float hit;
    float speed;
    float gust;
    int hitcnt;   // number of intervals used in wind average calculation
    float avgspeed; // average speed
}
measure;


void scanDevices(TwoWire *w);

void thp( measure &val);
void setwind();
void setrain();
void IRAM_ATTR counter();
float Speed();
float rain();
void IRAM_ATTR countRain();
